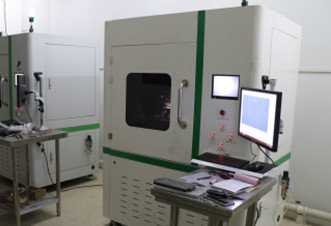

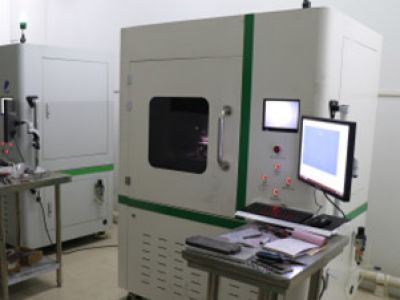

PCD Fiber Laser Cutting machine

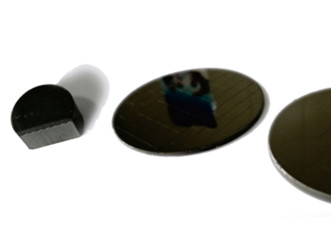

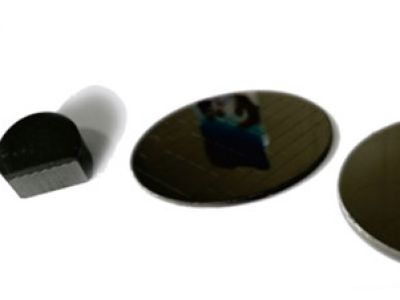

Cutting matrials :PCD Blanks and PCBN blanks
Charactericts: adjustment-free, maintenance-free and high stability,no need for a water cooler.
The power consumption of the whole machine is only 10% of the traditional laser cutting machine.
There is no optical lens in the resonant cavity of the laser of the precision diamond fiber laser cutting machine.which has the advantages of adjustment-free, maintenance-free and high stability. Because of the high photoelectricconversion rate of the fiberlaser, there is no need for a water cooler, The power consumption of the whole machine is only 10% of the traditional laser cutting machine, and the performance and stability ofthe equipment have been greatly improved.

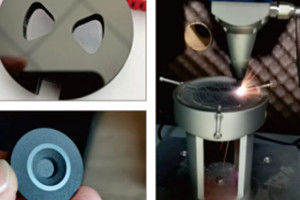

Laser cutting machines are widely used in the diamond industry. They can cut a variety of superhard materials with different thicknesses, such as cutting, punching, and pouring of PCD wire drawing dies, PCD composite sheets, CVD diamond, CBN composite sheets, ceramics, and silicon wafers etc.
Laser Cutting paraments
| laser power | low power | high power |
| 1.6 cutting speed | ≤100mm/min | ≥200mm/min |
| 2.0 cutting speed | ≤60mm/min | ≥140mm/min |
| 3.2 cutting speed | ≤10mm | ≤45mm |
| heat affected zone | ≤0.10mm | ≤0.10mm |
| maximum cutting thickness on one side | 2.5mm | 6.5mm |
| maximum cutting thickness on double side | 5mm | 13mm |
| table travel | 200mm*300mm | 200mm*300mm |
| maximum speed | 500mm/min | 500mm/min |
| rated power | 1000W | 2000W |
| physical dimension | 1610*1253*800 |
