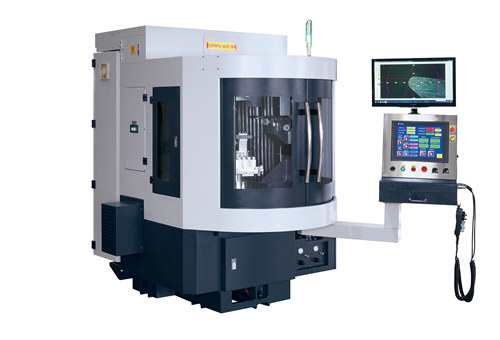

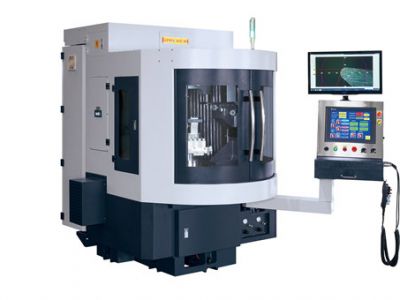

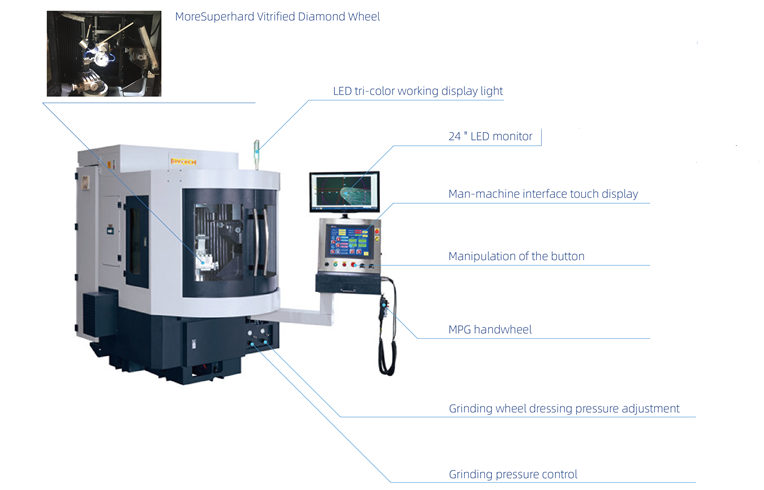

CNC MT-198NC PCD and CBN Grinding Machine

- MT-198NC spindle can be raised and lowered, B axis braking system and MPG handwhell provides added convenience in machine running test when production of special tools.

- 198NC PCD PCBN Tool Grinder, is a versatile machine, perfectly suited for manufacture and resharpen high-quality tools.

- The high-end machine, MT-198 has creative technologies to make it convenience to machine a wide range of special tools such as, spindle can be vertical movement, B axis braking system and MPG handwheel for easy setting and running test.

MoreSuperHard devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding. We can supply quality PCD grinder and grinding wheel at very long life as well as fast cutting. It can achieve very high surface finish, good self-sharpening and high grinding efficiency. Specially used for ultra-high precision PCD/PCBN tool grinding.

pcd grinding machine



Standard Accessories -MT 198NC Tool Grinder

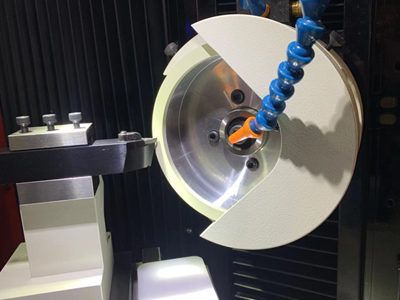

Vitrified Diamond Grinding Wheel

The vitrified diamond grinding wheel developed and produced by MoreSuperhard is matched with high-precision MT-188 tool grinder to grind pcd, pcbn, carbide, HSS tools, etc. We only choose the very strong synthetic diamond as the raw materials, make sure not only the particle shape is round enough but also be with some sharp points, which can make sure we won't lose the efficiency while we still want enough life from the wheels. So it will help you get fast, stable, much more PCD tools in unit time.

Germany Brand CCD System

The grinding machine equipped with German high-precision camers system and measurement software. The major performance features include: multiple language is available and CAD graphics and geometry in process measurement. Precision and producitiviuty has been greatly improved.

High Quality Casting Of Column and Base

The major machine elements, such as base, table and wheelhead are all analyzed by Computational Fluid Dynamics (CFD) to optimize the machine construction. This design performs the best structural dynamics with minimum deformation.

Servo Motor

The brushless servo spindle motor is much better than tradition motors that has the features of smaller, lighter, higher-torque, high-efficiency (2.2KW) and Max. Speed 6000 rpm/min.

Large capacity 100-liter tank with bag filters keep coolant clean for a long time to assure highest quality possible.

Roller Type Linear Guideway

To maximize stability and load capacity, the swing axis and position the axis are equipped with SCHNEEBERGER wide span and precision linear ways. No matter heavy duty or fine grinding, can to meet various machining requirements.

Automatic Lubricator

The automatic lubricator supplies lubrication to precision linear ways and roller ensuring high damping performance, long-term smooth feed and precise grinding.



pcd grinding machine



Optional Accessories - MT 198NC Grinder

Universal work table

The single axis can rotate work table and dual axes can tilt work table for tool’s back angle grinding.

Wheel dresser

The workbench type wheel dresser is equipped with power motor for dressing diamond grinding wheel. The accessory now has the features of compact design, quick setups and reduction of non-cutting idle time.

High precision dividing head

For clamp round tools, the precision ground indexing plate has 24 indexing locations in 15° increments also can fine adjustment the tune the angle. They’re commonly used with NANN precision collet and flange to achieve optimal performance increase.

pcd grinder





Parameter of 198NC Tool Grinder  ( * V:standard O: option X:not )

pcd tool grinding machine

SPEC

198NC

Spindle

0-6000 rpm/min (50Hz)

Vitrified grinding Wheel size

150 x 40 x 40

Grinding pressue

0-0.4 Mpa

Grinding wheel oscillation distance

0-40 mm

Grinding wheel oscillation stroke

40次/min

Grinding wheel oscillation position

0-198 mm

Grinding wheel inclidtion

-2°-24°

Swivel table swivelling angle

270°

Table size

210x 160x 4 slot

External dimoensions

1495 x 1580x 1710mm

Y axis mpg

O

X1 axis mpg

V

X2 axis mpg

V

A axis mpg

O

Z axis air pressure

V

B axis brakes

O

Spindle with variable speed

v

Grinding wheel spindle with variable speed

v

22” lcd monitor

v

High resolution camera and measurment system

v

Tool stand

12 16 20 25 32

Z axis dro

v

B axis dro

v

X axis dro

V

Y axis dro

V

A axis dro

O

Led work lamp

2 pcs

Grinding wheel

3 pcs

Net weight

2400 KGS

* All specification, dimension and design characteristics shown in this catalogue are subject to change without notice.
