Moresuperhard company launched a special vitrified diamond grinding wheel for M4 tool grinder like TX M4 tool grinder,MRCM M4 tool grinder.

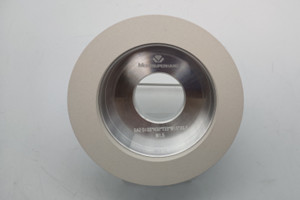

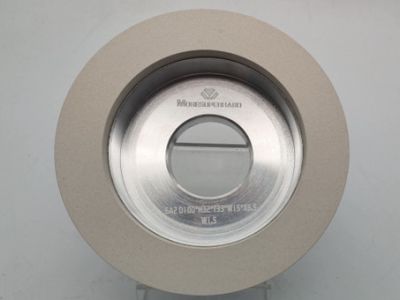

diamond grinding wheel for M4 tool grinder

These grinders are suitable for grinding and regrinding some simple tools. It is suitable for some tool grinding requirements that do not require high precision.Like PCD,PCBN,MCD and carbide inserts grinding and regrinding.

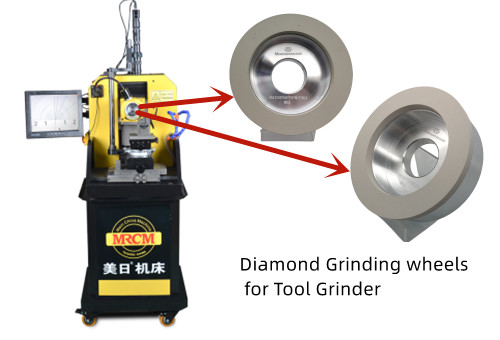

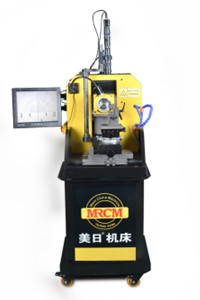

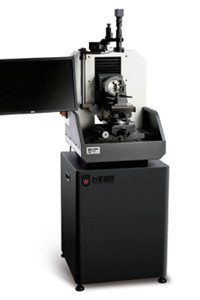

MRCM M4 tool grinderTX M4 tool grinder

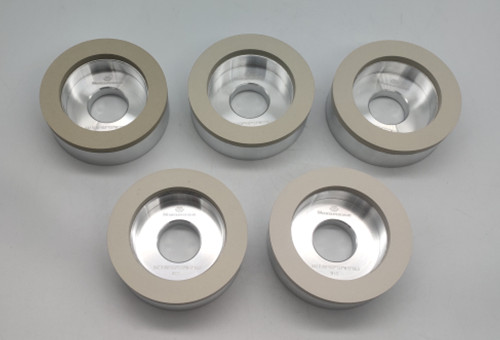

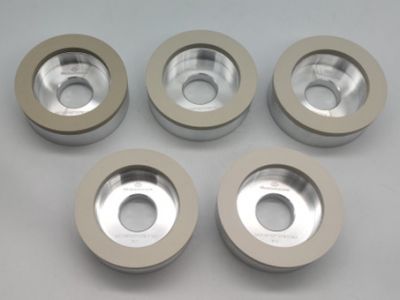

100mm and 125mm vitrified diamond grinding wheels are commonly used in M4 tool grinder .Moresuperhard provide 100mm and 125mm vitrified diamond grinding wheel to grind PCD/PCBN/MCD/carbide cutting tools.

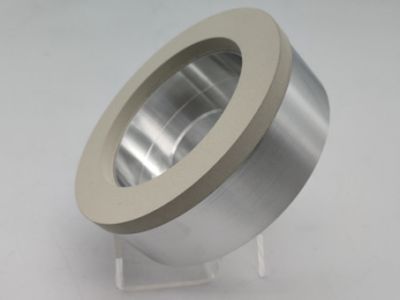

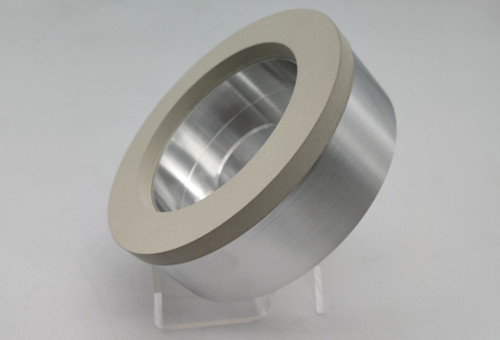

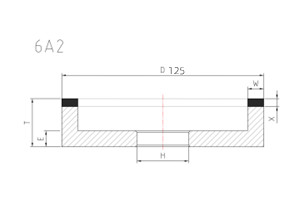

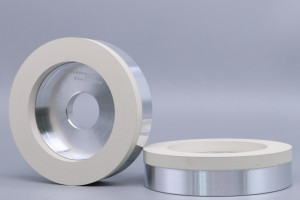

125mm vitrifed diamond grinding wheel for tool grinder drawing of 125mm diamond grinding wheel

6A2 D125mm -H32

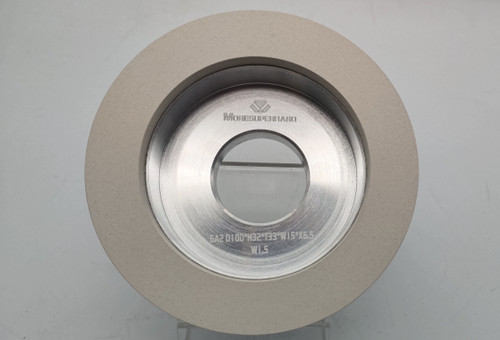

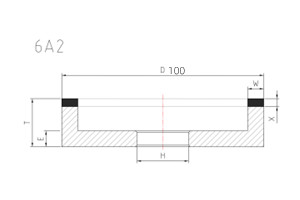

100mm vitrified diamond grinding wheel drawing of 100mm diamond wheel

6A2 D100mm-H32

The width and thickness of abrasives layer all can be customized.

Diamond Width: 3mm, 5mm, 10mm, 15mm, 20mm.According to the arc of the tool you need to grind

Grit Sizes:W40,W20 ,W10,W7,W5,W3.5,W1.5 and other customized grit size.

Advantages of vitrified diamond grinding wheel for M4 tool grinder

* The porous structure of the abrasive improved diamond exposure and can prevent vertical streaks on workpiece and improve surface quality

* Accurately control geometric tolerances to make a good abrasive layer

* Good self-sharpening, high grinding efficiency,high wear resistance and less abrasive grain consumption

* High precision workpiece. pcd tools can reach high efficiency , good surface finish and edge no chipping * Vitrified bond wheels offer tool life greater than 150 times that of a resin bond wheel and can be easily trued and dressed on the machine

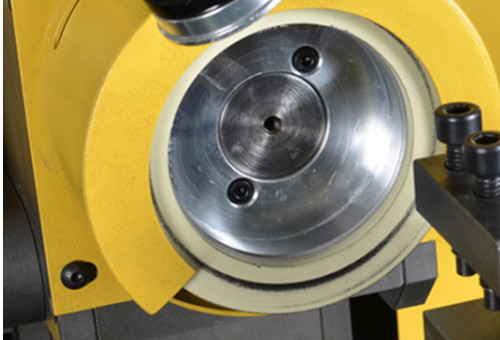

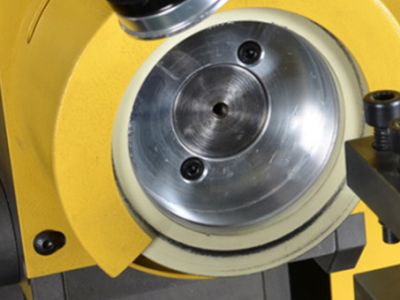

Application cases of vitrified diamond wheels on MRCM M4 tool grinder

Tool Grinder Grinding Wheel specifications Grit Workpiece









MRCM M40 Tool Grinder







vitrified diamond grinding wheel

6A2 D100*H32*T35*W15*X8

W10









MCD Cutting Tools

W5
W3.5
W2.5
W1.5

If you need grinding high precision mcd cutting tools,please contact us freely.
