PCD and CBN cutting tools are widely used in metal cutting and processing nowadays.“More Super Hard Products” devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding.

Diamond grinding wheels are used for grinding PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

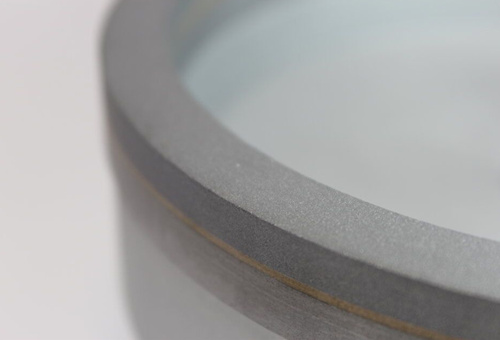

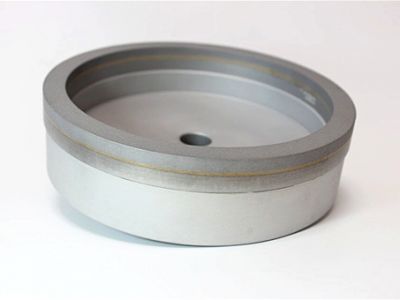

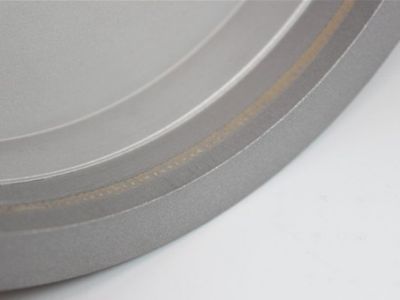

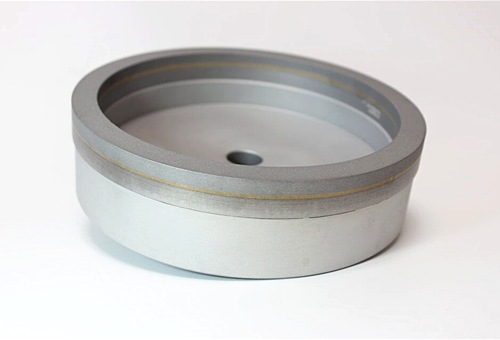

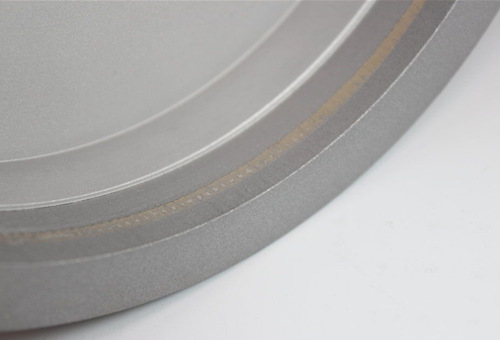

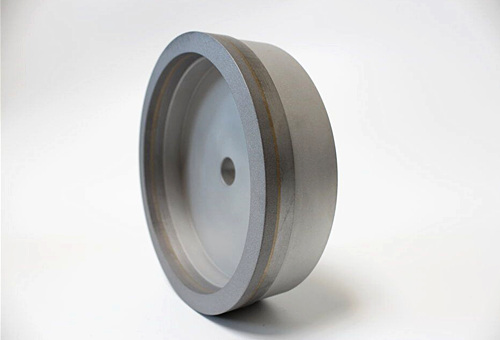

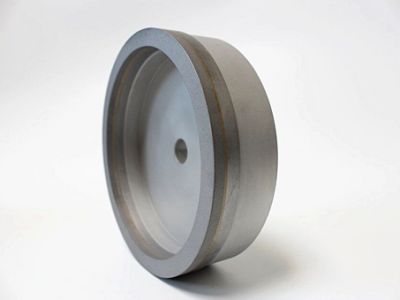

metal diamond cup wheel for pcd grindingmetal diamond cup wheel for pcd grinding

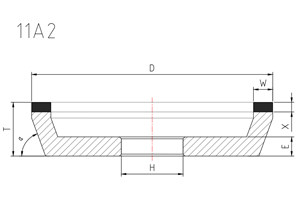

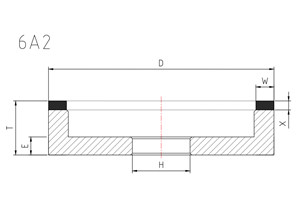

The specification of metal bond diamond wheel

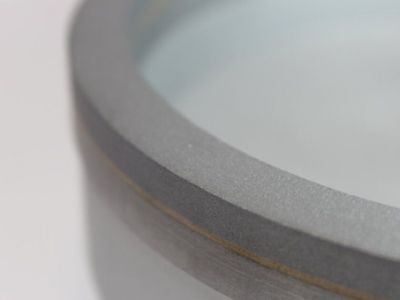

metal diamond cup wheel for pcd grindingmetal diamond cup wheel for pcd grinding

Model

D(mm)

T (mm)

H (mm)

W (mm)

X (mm)

6A2 / 11A2

150

40

32 40

3 5 10 15 20

10



125

40

32 40

3 5 10

10



100

40

32 40

3 5 10 20

10

Grit: 325/400, W40 (500#), W28 (600#), W20 (800#), W10 (1500#), W5 (3000#), W3 (5000#)



Suitable PCD Grinding Machines: COBORN,EWAG, Anca, FARMAN, MYTECH

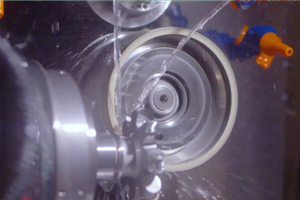

Application Example 1: PCD Inserts Grinding Vitrified Bond Diamond Grinding Wheel

Grinding machine

EWAG EasyGrind

Coolant

Emulsion

Workpiece

PCD insert (brazed, include carbide )

Grinding Parameters

Feed Rate

Vf = 2mm/min

Stock

0.3mm

Cutting Speed

Vc=15m/s

Advantage

1, 35%-time savings

2, 20% working life time increase

3, Chipping < 10μm
