The Secret of Vitrified Diamond Grinding Wheel Manufacturing

2024-06-07 16:01:39

In the realm of industrial manufacturing, precision and efficiency are paramount. Among the numerous tools and technologies developed to meet these demands, the vitrified diamond grinding wheel stands out as a marvel of engineering. These wheels are essential for the grinding of hard materials such as carbide, ceramics, and glass, offering superior performance compared to traditional abrasive wheels. But what exactly is the secret behind the manufacturing of vitrified diamond grinding wheels? This article delves into the intricate process and the advanced technologies involved in creating these powerful tools.

Understanding Vitrified Bonding

The term "vitrified" refers to a glass-like bond formed through the fusion of various materials at high temperatures. In the context of grinding wheels, a vitrified bond holds the diamond abrasives in place. This bond is created by mixing selected clays, feldspar, and other ceramic materials, which are then heated to form a vitreous or glass-like structure. The key advantages of vitrified bonds include their ability to withstand high temperatures, excellent strength, and rigidity, all of which contribute to the grinding wheel's durability and precision.

Diamond Powder Selection and Placement

The core component of a diamond grinding wheel is, unsurprisingly, the diamond itself. Synthetic diamonds are typically used due to their uniformity and cost-effectiveness. These diamonds are meticulously graded based on their size, shape, and strength. The distribution of diamonds within the grinding wheel is crucial; an even and precise placement ensures consistent grinding performance and prevents the wheel from becoming unbalanced. Advanced technologies, such as computer numerical control (CNC) machines, are employed to ensure precise placement of diamonds. These machines allow for the accurate positioning of diamonds in predetermined patterns, optimizing the grinding efficiency and prolonging the wheel's life.

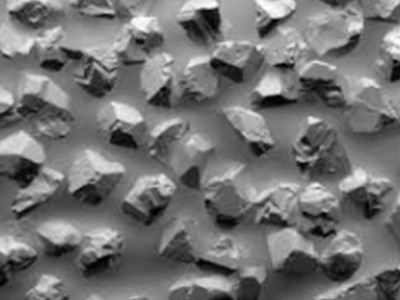

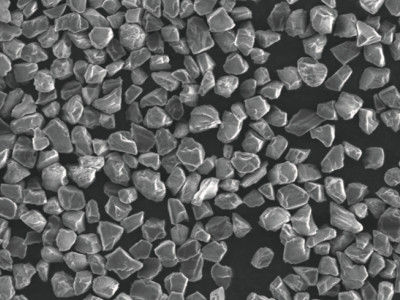

diamond powderdiamond powder placement



The Manufacturing Process of vitrified diamond grinding

The manufacturing of vitrified diamond grinding wheels involves several key steps:

Mixing: The diamond abrasive grains are mixed with the vitrified bond materials. This mixture is carefully controlled to ensure a homogeneous distribution of diamonds.

Molding: The mixture is then poured into molds of the desired shape and size. Pressure is applied to ensure the mixture is compacted, removing any air pockets that could weaken the wheel.

Firing: The molded mixture undergoes a firing process in a kiln at temperatures typically ranging from 1000 to 1300 degrees Celsius. This step is crucial as it transforms the bond materials into a glass-like structure, firmly embedding the diamond abrasives.

Cooling and Finishing: After firing, the grinding wheels are gradually cooled to prevent thermal shock. Once cooled, the wheels are inspected for any defects and then undergo finishing processes, such as truing and balancing, to ensure they meet the required specifications.

Quality Control

Quality control is an integral part of the manufacturing process. Each grinding wheel must meet stringent standards to ensure it can perform under demanding conditions. Advanced testing equipment is used to check the wheel's hardness, abrasive concentration, and structural integrity. Any wheel that fails to meet these standards is rejected to maintain the high quality that is expected in industrial applications.

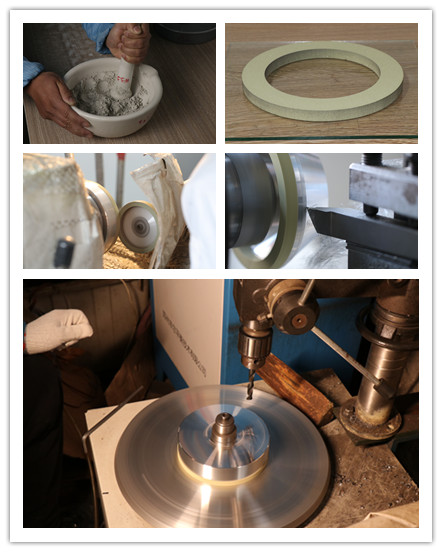

vitrified bond diamond grinding wheel procession

Innovations and Future Trends of vitrified diamond grinding wheel

The field of vitrified diamond grinding wheel manufacturing is continually evolving. Innovations such as the development of hybrid bonds, which combine vitrified and resin bonds, offer enhanced performance characteristics. Additionally, advancements in diamond synthesis and coating technologies promise to further improve the durability and efficiency of these grinding wheels. Research is also focused on developing eco-friendly manufacturing processes and recycling methods for grinding wheels, addressing the growing environmental concerns in industrial production.

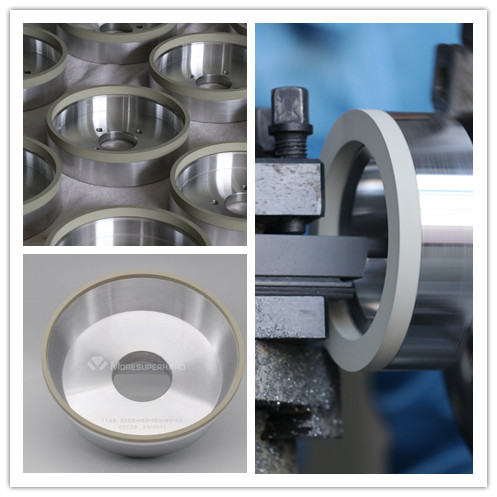

vitrified diamond grinding wheel
