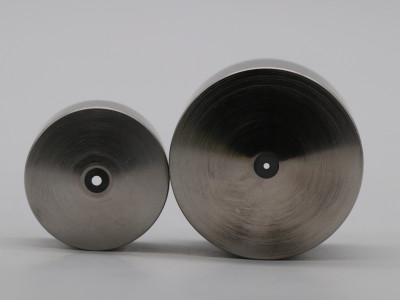

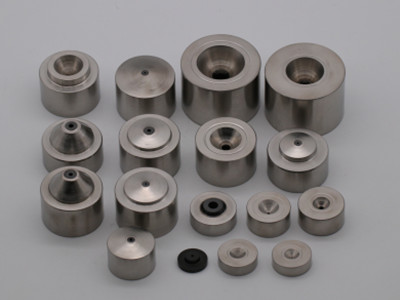

With the rapid expansion of new energy cables, automotive wiring harnesses, stainless steel wire, ultra-fine electronic wire for semiconductors, and photovoltaic ribbon industries, the metal wire drawing process has raised stringent requirements for die wear resistance, wire surface finish, and stability during continuous high-speed production. Traditional cemented carbide dies wear rapidly, resulting in frequent die changes and wire surface scratches. Natural single-crystal diamond dies come with high costs and poor impact resistance, prone to cracking. Polycrystalline diamond (PCD) wire drawing dies feature ultra-high hardness, uniform wear performance, and long service life, making them mainstream consumables for cable, metal product, and precision electronics industries.
Current market demands show two distinct trends: on one hand, ultra-fine wires for 5G communications, semiconductor bonding, and optical fiber require mirror-like surface quality; on the other hand, thick wires such as tire steel cords and high-carbon steel wires demand dies with strong toughness to withstand high reduction rates and impact. Single-grain-size PCD blanks cannot cover all production scenarios. Manufacturers often face improper die selection, drastically shortened die service life, increased defective wire rates, and higher overall production costs.

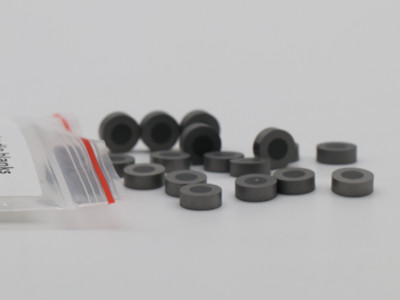

To solve industry pain points, Moresuperhard supplies full-gradient PCD wire drawing die blanks, covering four mainstream specifications: 3μm ultra-fine, 5μm fine, 10μm medium, and 25μm coarse grain. Our products balance high-finish fine wire drawing and high-toughness hard wire rough drawing scenarios. We provide standard stock blanks and customized die solutions, compatible with wet and dry drawing lines running at various speeds, helping wire manufacturers comprehensively cut costs related to die procurement, die replacement, and product waste.
Moresuperhard PCD die blanks are sintered from high-quality diamond powder under high temperature and high pressure, with evenly distributed grains free of segregation. Each grain grade has passed tens of thousands of drawing condition tests, with wear resistance, toughness, and polishing performance precisely matched to corresponding wire drawing processes.
Core Advantages
Extremely fine grains enable mirror polishing of die holes, delivering ultra-low wire Ra values without longitudinal scratches. Dense diamond grains deliver outstanding wear resistance, extending die service life by 30%–100% compared with medium-grain dies. Excellent thermal conductivity accelerates heat dissipation during high-speed drawing, preventing wire oxidation and dimensional deviation. The only drawback is relatively weak overall toughness; chipping or cracking may occur under instant impact.
Applicable Production Scenarios
High-precision processing of all types of ultra-fine wires and precious metal wires: gold and silver bonding wires for semiconductors, ultra-fine optical fiber coating wires, ultra-precision copper/aluminum electronic wires below 0.05mm, medical micro-guide wires, and premium optical matching wires.
Production Matching Conditions: Soft metal raw materials, high-speed drawing (10–50m/s), low reduction rates, stable vibration-free drawing equipment.
Core Advantages
Balanced surface finish and wear resistance; polished wires show smooth surfaces without burrs. Superior wear strength ensures stable dimensional accuracy during long-term continuous high-speed production. Moderate toughness avoids breakage under normal working conditions, balancing finished product quality and durability. It is the mainstream specification for mass production cable factories.
Applicable Production Scenarios
Copper core wires, aluminum strands, new energy power battery tab copper strips, medium-thin automotive wiring harnesses, photovoltaic ribbons, and other mass-produced soft metal wire production lines.
Production Matching Conditions: Continuous high-speed wire drawing, long-batch production, strict requirements for wire appearance and dimensional tolerance.
Core Advantages
Large diamond grains create a robust internal bonding structure with exceptional toughness, outstanding impact and crack resistance. Capable of withstanding large cross-section reduction rates and severe friction from hard metals, and highly tolerant of equipment vibration and insufficient lubrication. The limitation is the upper polishing threshold; subtle surface textures remain on wires, making it unsuitable for high-finish finished products.
Applicable Production Scenarios
High-carbon steel wires, tire steel cords, steel wire rope blanks, stainless steel thick rod rough drawing, and pre-drawing processes with high reduction rates.
Production Matching Conditions: Hard metal raw materials, low-speed drawing, rough forming procedures, harsh high-wear working environments.
Finer grain sizes deliver higher polishing limits for die holes: 3μm and 5μm dies produce mirror-finish wires scratch-free with low roughness, directly meeting inspection standards for high-end electronics and medical wires. 10μm medium-grain dies yield uniformly smooth wires compliant with standard cable requirements. 25μm coarse-grain dies are only suitable for semi-finished rough drawing, requiring subsequent fine drawing processes for finished products.
Fine-grain PCD features dense texture and superior wear resistance. Under identical working conditions, their service life is 30%–100% longer than coarse-grain dies, drastically reducing production downtime for die replacement. While coarse-grain dies offer good toughness, they wear faster during hard wire rough drawing and require regular aperture inspection. Mass long-term fine wire production with 3μm and 5μm dies cuts labor and downtime losses from frequent die changes significantly.
Larger grain sizes equal better toughness: 25μm coarse-grain dies withstand wire tangling, equipment vibration, and high reduction rate impact, with minimal cracking or chipping failures. 3μm ultra-fine dies are brittle; production requires burr-free raw materials and stable drawing equipment to prevent instant impact leading to blank scrappage.
3μm and 5μm fine-grain dies support continuous high-speed drawing at 10–50m/s with stable heat dissipation and no die burning risks. 10μm medium-grain dies fit general medium-low speed production lines. 25μm coarse-grain dies are only recommended for low-speed rough drawing; high-speed operation aggravates surface textures and accelerates die hole wear.
Compatible Metal Materials

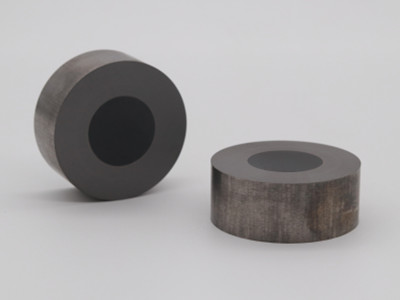

Moresuperhard maintains complete inventory of 3μm, 5μm, 10μm, and 25μm PCD blanks. Clients source all blanks for fine wire, rough drawing, precious metal, and hard steel wire lines without coordinating multiple suppliers. Customized special gradient grain sizes, non-standard outer diameters, and cemented carbide composite support blanks are available to match all imported and domestic wire drawing machines.
Our PCD blanks are integrally sintered with premium imported diamond powder under high temperature and high pressure, free of delamination and pores. Uniform die hole wear guarantees stable wire roundness and diameter tolerance during long-term production. Every blank undergoes roughness, wear, and impact simulation testing before delivery, eliminating batch fluctuations in die performance that cause mass defective wires.
Compared with cemented carbide dies, Moresuperhard PCD blanks extend service life dozens of times, cutting downtime labor costs for die replacement. Wires produced with fine-grain dies meet surface standards directly, removing secondary polishing procedures. Coarse-grain dies tolerate harsh rough drawing conditions and lower blank scrappage rates from cracking. Long-term calculations show overall die consumable costs per ton of finished wire drop by over 40%.
Moresuperhard employs senior wire drawing process engineers to match the optimal grain size blank one-on-one based on clients’ wire material, wire diameter, drawing speed, reduction rate, and finished surface finish requirements. We provide optimization plans for existing production line pain points, solving common manufacturing issues including wire scratches, frequent blank breakage, and unstable dimensional accuracy.
Worn blanks support professional polishing repair and hole expanding reconditioning to extend blank reuse cycles significantly. Every shipment includes full specification parameters and working condition guidance. On-site process support is promptly available for operational issues to guarantee stable customer production.
As wire manufacturing advances toward refinement, automation, and large-scale production, PCD wire drawing die grain size selection directly determines production line efficiency, finished product yield, and overall manufacturing costs. Leveraging mature superhard material R&D and mass production capacity, Moresuperhard delivers a full product portfolio covering mirror-grade ultra-fine dies and impact-resistant rough drawing dies, precisely matching demand across the entire industrial chain of electronics, cables, metal products, and new energy.
If you aim to optimize your current wire drawing die solution, purchase standard-size PCD blanks in bulk, or customize non-standard blanks, contact Moresuperhard’s technical team at any time for free working condition matching and sample support. Upgrade to high-performance PCD blanks with Moresuperhard to boost product quality, reduce production costs, and expand output capacity.
