Diamond Rotary Dresser: Key Applications & Markets

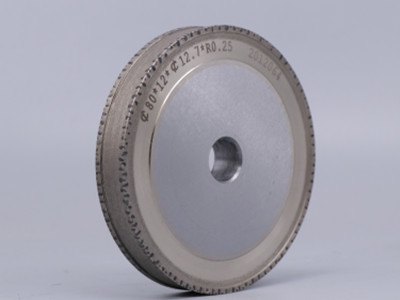

Diamond rotary dresser (also known as diamond rotary truer) is a high‑precision, high‑efficiency consumable for grinding‑wheel profiling. It transfers its own geometry onto grinding wheels and defines final workpiece dimension tolerance, surface finish and batch consistency. Historically focused on automotive transmission and bearing parts, diamond rollers are now gaining wider adoption alongside booming third‑generation semiconductors, new‑energy vehicles, aero‑engine manufacturing and industrial robotics. More manufacturers are replacing single‑point diamond tools with custom diamond rotary dressers to achieve better throughput, higher yield and lower total operational cost.

MoreSuperHard specializes in custom‑built diamond rollers covering electroplated, sintered and CVD‑enhanced technologies. We design products strictly according to customer drawings, machine specifications and grinding‑wheel conditions. Outstanding profile accuracy, low wear rate and stable geometry help manufacturers reduce rejection rate, cut machine‑stop time and extend service life of both dressers and grinding wheels.

1. Aerospace & High‑End Energy｜Complex Contours & Difficult‑to‑Machine Materials

Aero‑engines and heavy‑duty gas turbines widely adopt nickel‑based superalloys and ceramic‑matrix composites (CMC). Creep‑feed grinding is commonly adopted, which places extreme requirements on profile fidelity and wear resistance of dressing tools. Diamond dressers represent a key path for local substitution against imported tooling.

• Turbine blade fir‑tree root grinding: Electroformed or sintered diamond rollers profile grinding wheels to reproduce complex fir‑tree root geometry and maintain micron‑level tolerances for engine‑blade assembly.
• Large‑size power‑generation turbine manufacturing: Expanding power infrastructure driven by AI data centers boosts demand for heavy‑duty turbine components and large‑format custom diamond rotary dressers for continuous heavy‑load grinding.

Customer value: CVD‑enhanced diamond rollers minimize profile drift during long‑run mass production and meet strict reliability standards for aviation and power‑generation equipment.

2. Semiconductor & Advanced Electronic Packaging｜Ultra‑thin & Ultra‑hard Material for High‑Yield Production

Industrialization of SiC/GaN third‑generation semiconductors and AI‑chip advanced packaging create strong demand for high‑precision dressing consumables. Dressing performance directly impacts wafer and substrate production yield.

• Wafer back‑grinding wheel dressing: Ultra‑fine‑grit grinding wheels for wafer thinning tend to clog and dull. High‑precision diamond rotary dressers restore micro‑edge sharpness without damaging wheels, lowering wafer chipping and breakage risk.
• Ceramic substrate & micro‑chip substrate dicing‑wheel dressing: Diamond rollers dress ultra‑thin dicing wheels to reduce kerf loss and substrate chipping for miniaturized electronic components in high‑density packaging.

Customer value: Electroplated diamond rollers deliver sharp, uniform micro‑profiles, supporting 24/7 automatic semiconductor‑line operation and reducing costly chip scrap loss.

3. Precision Transmission & Robotics Automation｜High‑Frequency Reciprocating Operation with Long‑Term Geometric Stability

Industrial robots, eVTOL and high‑end CNC machine tools impose strict limits on service life and noise of transmission components. Part‑to‑part consistency heavily depends on diamond‑roller dressing quality.

• Ball‑screw & roller guideway groove grinding: Form‑plunge diamond dressers maintain stable raceway geometry under long‑term high‑frequency reciprocating motion, securing motion accuracy of robots and machine tools.
• High‑precision reducer gear grinding: CNC‑controlled linear or form‑type diamond rollers efficiently dress grinding wheels for complex tooth profiles of RV and harmonic reducers to achieve low‑backlash and low‑noise performance.

Customer value: Sintered diamond rollers feature superior wear resistance for mass‑volume production, cutting frequent machine re‑adjustment and securing consistent performance of robot components across batches.

4. New‑Energy Vehicle Core Components｜Precision Grinding for High‑Speed Drivetrains

Traditional internal‑combustion‑engine‑related dressing demands are declining, while electric‑vehicle drivetrains raise NVH requirements for gears and thermal‑management components, bringing new high‑end grinding scenarios.

• High‑speed e‑drive gear‑shaft grinding: EV motors run up to 16,000‑20,000 rpm. Ultra‑precision diamond rollers are essential for dressing gear‑grinding wheels to guarantee tooth‑form accuracy and low‑noise vehicle operation.
• Oil‑water cooling pump & hydraulic component machining: Diamond rollers support precision grinding of pump shafts, valves and ball studs inside EV thermal‑management and steering systems and prevent thermal burns on workpiece surfaces.

Customer value: Custom diamond rollers help EV component manufacturers consistently deliver high‑NVH‑grade transmission parts and reduce vehicle‑noise‑related failures.

5. Medical Devices & Precision Optics｜Rigorous Dimensional & Surface‑Quality Control

Medical implant and optical‑mold industries are shifting to fully automatic CNC grinding with strict standards for dimensional accuracy and surface integrity.

• Orthopedic implant & surgical‑instrument grinding: Diamond‑roller‑dressed wheels produce burn‑free surfaces on titanium / CoCrMo hip implants and minimally‑invasive surgical tools to satisfy medical‑safety specifications.
• Precision optical lens & mold grinding: Super‑precision diamond rollers dress grinding wheels for aspheric glass‑lens molds to reproduce complex optical profiles.

Customer value: Electroplated diamond rollers deliver high‑fidelity micro‑profiles and support flexible low‑to‑medium‑volume production for medical‑optical prototyping and new‑product development.

6. High‑End Tools & General‑Purpose Machinery Manufacturing｜Long‑Life & Cost‑Effective Mass‑Production Solutions

Tooling, fastener and premium textile‑machinery industries prioritize service life and comprehensive cost‑effectiveness for high‑volume grinding processes.

• High‑precision cutting‑tool & aerospace fastener production: Diamond dressers profile grinding wheels for flute grinding of carbide taps, drills, end‑mills and thread grinding of high‑strength aerospace fasteners.
• Premium sewing‑machine component manufacturing: Complex miniature cam, needle‑bar and linkage parts for textile machinery require stable profile reproduction via diamond‑roller dressing.

Customer value: Properly‑selected diamond rotary dressers reduce manual adjustment work versus single‑point diamond tools, lower per‑piece cost and improve overall‑equipment‑efficiency (OEE).

Process‑Solution Comparison Table

MoreSuperHard’s full portfolio of electroplated, sintered and CVD‑enhanced diamond rotary dressers delivers complete solutions for all above high‑potential markets. We provide fully custom development according to customer drawings, machine‑tool models and grinding‑wheel parameters. Our products feature outstanding profile accuracy, extended service life and stable performance, helping manufacturers boost productivity, raise finished‑part yield and cut comprehensive manufacturing cost for both mature‑core‑business and future high‑growth‑segment projects.

Why Partner with MoreSuperHard?

• Full‑process coverage: Electroplated, sintered and CVD‑enhanced technologies, covering micro‑precision small‑batch to heavy‑duty mass‑production working conditions
• Strong customization capability: Drawing‑based design or reverse‑engineering from sample parts, compatible with various grinders and CBN / conventional abrasive wheels
• Import‑comparable quality: Tight micron‑level profile control, optimized diamond‑grain bonding strength to mitigate grain‑pull‑out and premature wear
• Full‑lifecycle technical support: Pre‑sales process‑selection advice, operational‑parameter guidance and post‑delivery wear‑evaluation service for grinding‑wheel‑dressing challenges.

Partner with MoreSuperHard, equip your precision‑grinding workflows with reliable diamond‑rotary‑dresser solutions and tackle tomorrow’s advanced‑manufacturing challenges.
